SWP13
 |
Blank. Only the Best Materials Hubbell offers a wide variety of configurations available in high-impact nylon and metal wall plates. In 1981 Hubbell was the first manufacturer to introduce nylon wall plates. Hubbell only offers plastic plates of a high-impact material and does not offer wall plates made of materials that are subject to breakage in abusive environments. Hubbell only offers the best grade of stainless steel type 302/304, which is 18% chrome, 8% nickel, non magnetic providing superior corrosion resistance versus type 430 stainless steel. When you specify Hubbell wall plates you can be assured of the highest quality materials providing extended life in the most abusive environments. |
| Hubbell Wiring Device-Kellems Product Specifications | |
|---|---|
| Product | Security Wall Plates |
| Plate Image | |
| Color/Material | One piece #14 Cold rolled zinc plated steel with safety ground tab. White |
| Gangs | 1 |
| Listings | UL Standard 514A |
| Certification | UL Files #31999 and E115546. CSA Standard C22.2 42M CSA File LR18416 |
| Thickness | .55" (13.97) |
| Mounting Screws | (4) #8-32 x 1/2" Stainless Steel, T20 Torx Head |
| Appearance | Five stage baked white polyester powder enamel finish |
| Product Dimensions | 3.77" x 5.52" (95.76 x 140.21) |
| Device Opening(s) | 1) Blank |

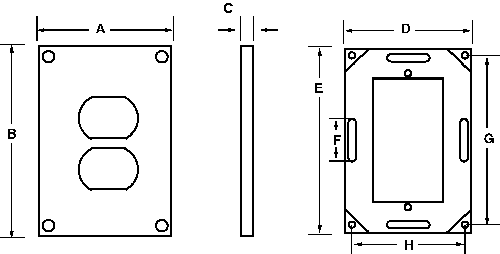

| Dimension A | 3.77" (95.76) |
| Dimension B | 5.52" (140.21) |
| Dimension C | .55" (13.97) |
| Dimension D | 3.37" (85.60) |
| Dimension E | 5.13" (130.30) |
| Dimension F | 1.00" (25.40) |
| Dimension G | 4.63" (117.60) |
| Dimension H | 2.88" (73.15) |
 |
