| Hubbell Wiring Device-Kellems Product
Specifications |
| Type |

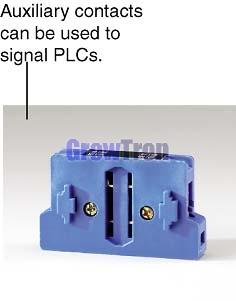

A 600 Pilot Duty Aux Contact
|
| Switch Type for Auxiliary
Contacts |
Normally Open Normally Closed
|
| Amperage |
10A |
| Voltage |
600V AC or less |
| Termination Type for Auxiliary
Contacts |
Box Terminal |
| Contact Style |
Make before make break before
break |
| For Use With |
Unfused Disconnects and
Mechanical Interlocks |
| Terminals Material |
Brass |
| Contacts Material |
Silver Cadmium Oxide |
| Dielectric Voltage
Withstand |
1500V minimum |
| Max. Working Voltage |
600 VAC |
| Temperature Rise |
30°C maximum at rated current
|
| Flammability |
UL 94 V0 |
| Operating Temperature |
Max. continuous: 75° C; Min.
continuous: -40° C w/o impact |
