KP720
 |
Single - 20/30A Twist-LockŪ 1.60" (40.5) boss dia. All PolyTrakŪ boxes use Hubbell "KP" series one-gang and two-gang device face plates. These plates accommodate a wide variety of wiring devices and data/voice connectors in many different configurations. "KP" face plates are designed to fit flat and flush with PolyTrak boxes. Jacks and connectors are sold separately, unless noted otherwise. |
| Hubbell Wiring Device-Kellems Product Specifications | |
|---|---|
| Component | Plates |
| For Use With | All PolyTrak Raceways |
| Gangs | 1 |
| Raceway Specific Plate Configuration | 20/30 A Twist-Lock (1.600 O.D.) |
| Materials | U.V. Stabilized PVC |
| Listings/Approvals | UL Listed 300 lbs. (1334 N) crush resistance and 5 ft./lbs. (6.8 J) impact resistance, CSA Certified. |
| Flammability | UL 94V0 |
| National Electric Code | Article 352 B |
| Voltage | UL 600 Volt Rated |
| Color |  |

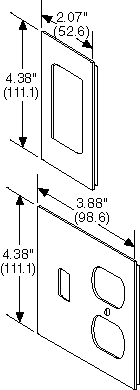

| Plate Dimensions | 4.38" x 2.07" (111.1 x 52.6) |
 |
