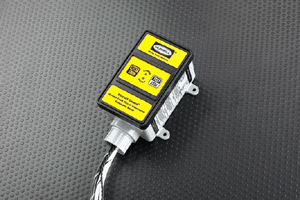

GFCI Hard Wired
|
| Hubbell Wiring Device-Kellems Product
Specifications |
| GFCI Product Type |
|
| Amperage |
30A |
| Grade |
Ind/Comm |
| Style |
Hard Wired/Panel Mount |
| Set Style |
Automatic |
| Color |
 |
| Voltage |
240V AC |
| Poles and Wires |
2 Pole, 3 Wire Grounding |
| Description |
Surface or Panel Mount Hard
Wired GFCI Device |
| Certification |
cULus Listed |
| Pre-stripped Leads |
18" Stripped Wire Leads |
| Dielectric |
Withstands 1500V minimum |
| Trip Level |
4 to 6 mA. |
| Trip Time |
.025 Sec. Nominal. |
| Frequency |
60 Hz. |
| Voltage Range |
85% to 110% of Rated Voltage
|
| Operating Temperature |
-35°C to +66°C (-30°F to
+150°F) |
| Maximum Humidity |
95%. |
| Codes |
Meets all 1999 NEC
Requirements. |
| Housing Material |
Gray PVC Enclosure |
| Terminal Identification |
Color coded lead wires. |
| Product Identification |
Ratings are a permanent part of
the device. |
|
