Product Data Sheet
HBMS03501


Mini-Quick™ Quick Connect Control Connectors

Introducing the new Hubbell Mini-Quick line of molded control connectors for automated manufacturing and signal & control applications. Mini-Quick has been designed to withstand the harsh environments found in manufacturing today while maintaining the level of performance that is expected from Hubbell. The Mini-Quick line of control connectors fills your needs for quick connections to devices in harsh industrial environments and meets your needs for higher pin counts.

Mini-Quick connectors are a line of environmentally protected industrial circular connectors typically used for the installation and quick disconnect of 18 & 30 mm proximity sensors, limit switches, photoeyes and solenoids. Mini-Quick's environmental and electrical ratings also make it well suited for use in outdoor lighting and other commercial applications. Micro-Quick connectors provide a time saving alternative to the hard wiring of sensors, prox switches and limit switches. This UL Listed product will intermate with existing Mini product on the market.

Hubbell Wiring Device-Kellems Product Specifications
 Type of Control Connector  Mini-Quick

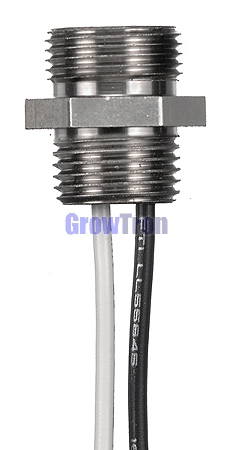

 Device Type  Male Receptacle
 Shell Material  Metallic
 Connector Body Style  Straight
 Poles  3
 Conductor Size Receptacles  #16 AWG Discrete Wire
 Discrete Wire Length  1 Ft.
 Insulator Material  Nylon 6/6, White
 Contact Materials  Brass
 Contact Plating  Hard Gold over Palladium/Nickel
 Receptacle Shell  Nickel Plated Brass
 Wire Insulation Material  PVC
 Conductor Stranding  65/34
 Voltage Rating  600V DC/600V AC
 Amperage  15A
 Contact Resistance  <= 5 m ohms
 Isolation Resistance  >= 1000 M ohms
 Moisture Protection  IP67, UL TYPE 4, TYPE 4X, TYPE 12 & TYPE 13
 Operating Temperature  -20 TO 105 C
 Corrosion Resistance  500 hours salt spray per MIL-STD-1344, METHOD 1001
 Vibration Resistance  10-2000 HZ @ 15g per MIL-STD-1344,METHOD 2005
 UL Certifications  UL2238 and UL50, File E192071
 CSA Certifications  CSA Certified - C22.2 No. 182.3 and CSA C22.2 No. 94

Features/Benefits
FEATURES BENEFITS
• Nickel plated, brass coupling nuts and receptacle shells • Cost effective plating resists corrosion in high abuse environments.
• Hard gold over Palladium Nickel contact plating • Durable plating for longer contact life and high mating cycles.
• Beryllium copper sleeved socket contacts • Resilient base metal helps contact maintain its shape and continuity over time.
• Anti vibration coupling nut and insulator design. • Prevents coupling nut from loosening under harsh vibration conditions.
• Gated strain relief with graduated windows • Increased flexibility with force distributed away from contacts to protect wire terminations.
• Black overmold and cable • Cable assembly resists dirt and blends with environment giving a clean look to the installation.
• Insulgrip® connector body design • Ergonomic connector body has an industrial look. Easily identifiable as a Hubbell product.
