Product Data Sheet  fds 60

FDS60




Hubbell Wiring Device-Kellems Product Specifications

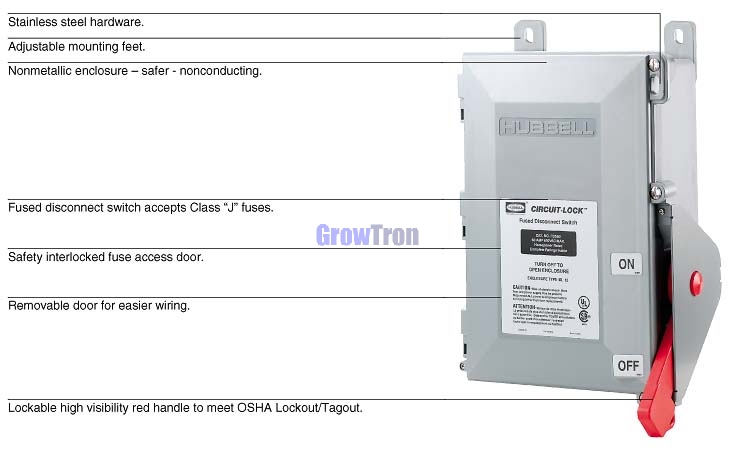

 Type  Switched Enclosure
 Switch Type for Switched Enclosures  3 Pole
 Amperage  60A
 Voltage  600V AC or less
 Fused Switch?  Yes
 Auxiliary Contact  No
 Termination Type for Switched Enclosures  Box Terminal
 Color
 Approvals  UL listed, CSA certified, Type 4, 4X and 12K Enclosure rating
 Terminals Material  Brass
 Contacts Material  Silver Cadmium Oxide
 Ground Terminal Material  Brass
 Ground Screw Material  Brass
 Dielectric Voltage Withstand  1500V minimum
 Max. Working Voltage  600V AC
 Temperature Rise  30C maximum at rated current
 Flammability  UL 94 V0
 Operating Temperature  Max. continuous: 75 C; Min. continuous: -40 C w/o impact
 Horsepower Rating  The starting current of motors of more than the standard horsepower rating may require the use of fuses with appropriate time-delay characteristics.
 Short Circuit Withstand Rating  Suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes at the voltage rating of receptacle when protected by Class "J" fuses.

Ordering Information
Amp Ratings Volts Std. HP Max. HP*
60A
600V AC
Max.
120V AC 1.5 3.0
208-240V AC 3.0 7.5
240V AC 3 7.5 15.0
480V AC 3 15.0 30.0
600V AC 3 15.0 40.0
120/208V AC 3 Y 7.5 15.0
277/480V AC 3 Y 15.0 30.0
347/600V AC 3 Y 15.0 40.0

*Requires time delay fuses.







Hubbell Wiring Device-Kellems
