Product Data Sheet

WS1277W2



Passive Infrared Wall Switch for Dual-Level Lighting

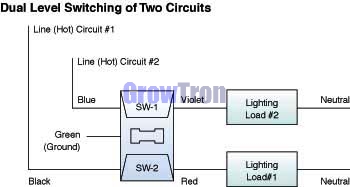

Hubbell WS1277W2 passive infrared wall switch sensor is a double pole, single throw wall switch with two separate relays. This wall switch can be used for dual level switching from one or two circuits.

Hubbell Wiring Device-Kellems Product Specifications
 Product  Indoor Sensor
 Application  Wall Switch
 # of Poles  Double
 Sensing Technology  Passive Infrared
 Coverage Area  1000 Sq. Ft.
 Adaptive  No
 Photocell  No
 Power Supply  120/277V AC, 60 Hz
 Color
 Agency Approvals  UL listed, CUL listed
 Lens Material  Polyethylene
 Dimensions  Face 4.54"H x 2.79"W, 0.95"D (from wall out)
 Housing Material  High-impact ABS
 Operating Temperature  32 F to 122 F (0 C to 50 C) with rate of change not exceeding 20 F (11 C) per hour
 Operating Humidity  20% to 90% noncondensing relative humidity
 Storage Temperature  -40 F to 150 F (-40 C to 65 C)
 Storage Humidity  20% to 90% noncondensing relative humidity
 Time Delay  3 to 30 minutes
 Passive Infrared Sensing Indicator  Red LED
 Mounting Height  42 to 54 inches above floor
 Incandescent Load Capacity  0 to 600 watts each circuit
 120V Ballast Load Capacity  0 to 1000 watts each circuit
 277V Ballast Load Capacity  0 to 1800 watts each circuit
 Front Rocker Switches (two)  Auto/Off
